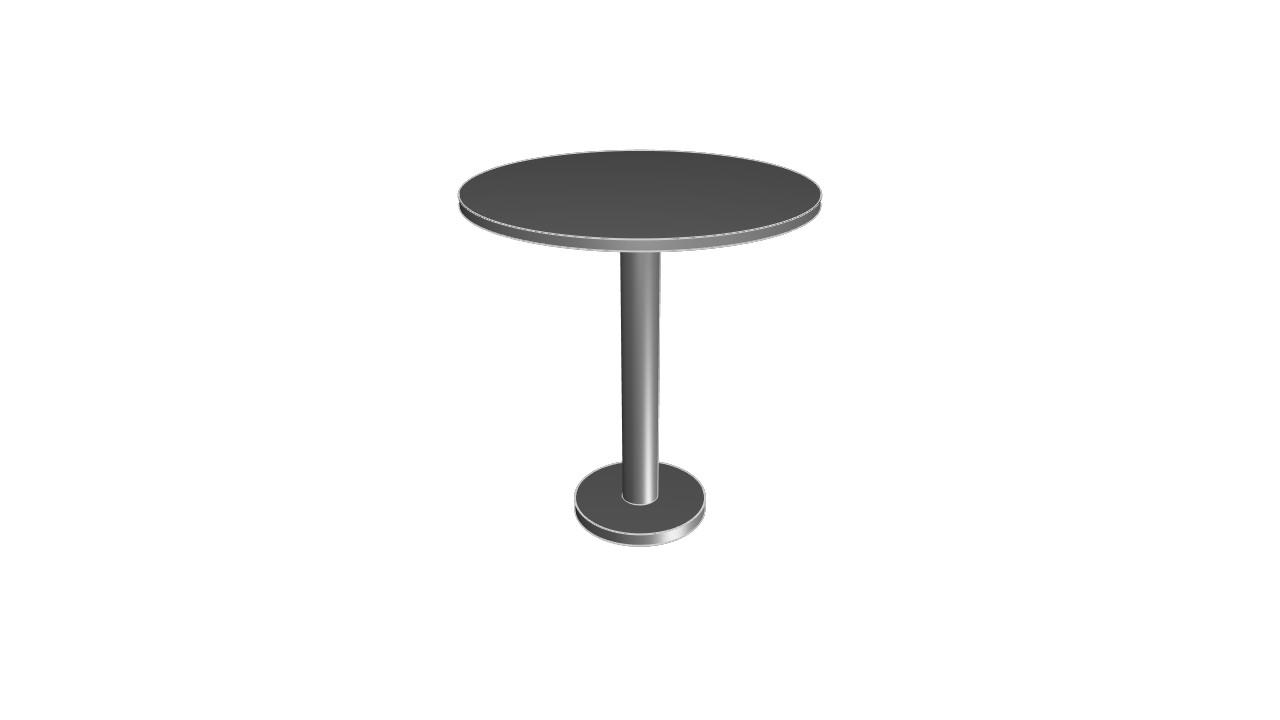

Simple round table with a base, single leg, and tabletop

// Round Table
// Simple round table with a base, single leg, and tabletop
// Categories: Construction, Maker

@settings(defaultLengthUnit = mm)

// Parameters
tableTopHeight = 750
tableTopRadius = 350
tableTopThickness = 20

baseRadius = 150
baseThickness = 30
legRadius = 40

// Tabletop
tableTopPlane = offsetPlane(XY, offset = tableTopHeight)
tableTopSketch = startSketchOn(tableTopPlane)
tableTopProfile = sketch(on = tableTopSketch) {
  circle1 = circle(start = [var 350mm, var 0mm], center = [var 0mm, var 0mm])
  radius(circle1) == tableTopRadius
}
region001 = region(segments = [tableTopProfile.circle1])
tableTopExtrude = extrude(region001, length = -tableTopThickness)

// Base
baseSketch = startSketchOn(XY)
baseProfile = sketch(on = baseSketch) {
  circle1 = circle(start = [var 150mm, var 0mm], center = [var 0mm, var 0mm])
  radius(circle1) == baseRadius
}
region002 = region(segments = [baseProfile.circle1])
baseExtrude = extrude(region002, length = baseThickness)

// Leg
legHeight = tableTopHeight - baseThickness - tableTopThickness
legPlane = offsetPlane(XY, offset = baseThickness)
legSketch = startSketchOn(legPlane)
legProfile = sketch(on = legSketch) {
  circle1 = circle(start = [var 40mm, var 0mm], center = [var 0mm, var 0mm])
  radius(circle1) == legRadius
}
region003 = region(segments = [legProfile.circle1])
legExtrude = extrude(region003, length = legHeight)
