GD&T note for adding free-floating manufacturing text that is not attached to a face or edge.
This is part of model-based definition (MBD). Unlike gdt::annotation, a note has no leader
and is placed directly on a plane. By default it lives on the world XY plane, but any plane
(a standard plane like XZ/YZ, or a user-defined plane) can be supplied via framePlane.
Arguments
| Name | Type | Description | Required |
|---|---|---|---|
note | string | The note text to display. | Yes |
framePlane | Plane | The plane the note lies in. The default is XY. Other standard planes like XZ and YZ, or a user-defined plane, can also be used. | No |
framePosition | Point2d | The 2D position of the note within the plane, in the plane's local coordinates. The default is [100mm, 100mm]. | No |
fontSize | number(Length) | The model-space height to use for the note text. The default is 10mm. Explicit units are supported; bare numbers use the file's default length unit. This changes the scene size, not the internal raster texture quality. | No |
Returns
GdtAnnotation - A GD&T annotation created by one of the gdt functions.

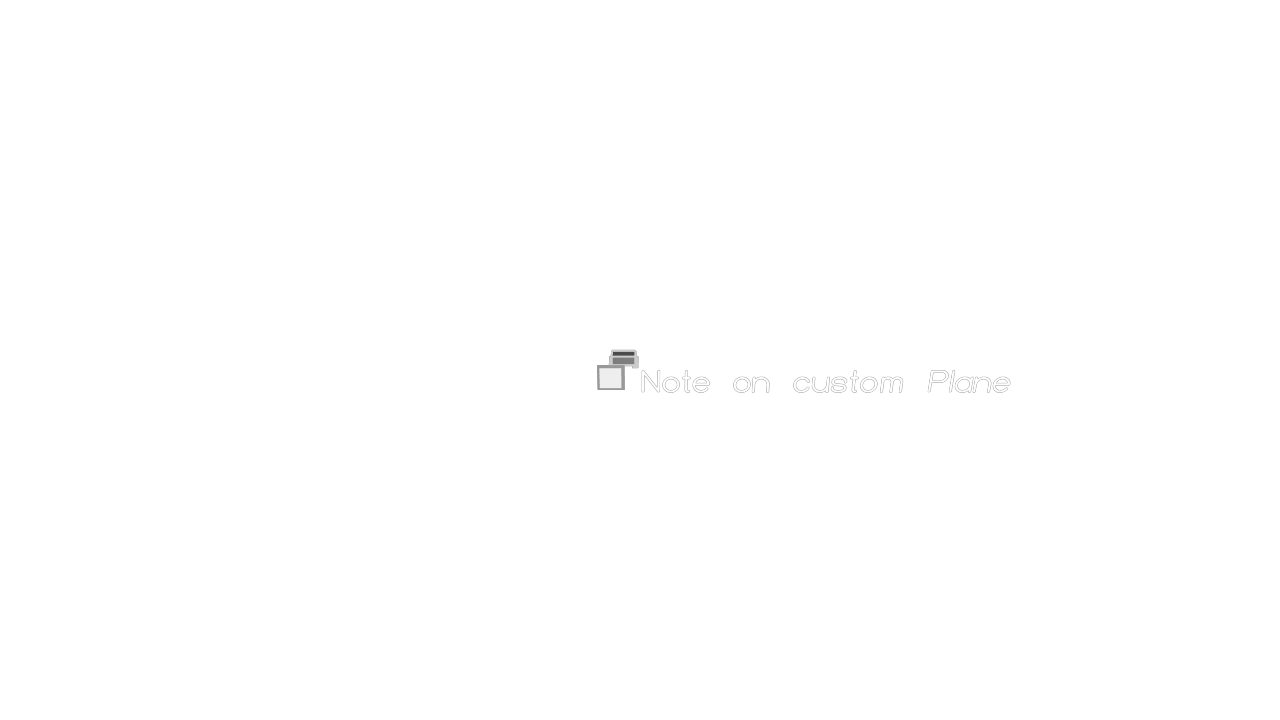

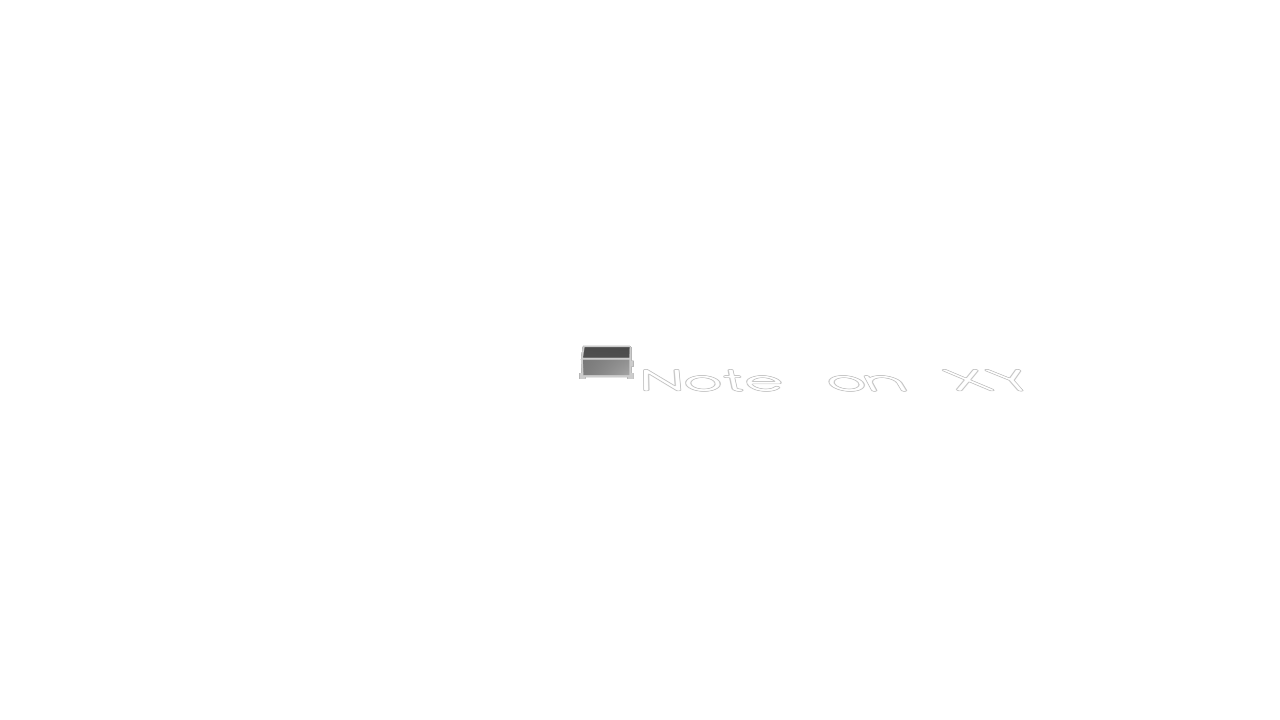

Examples
